Description

• Clamex P-14 is a detachable, strong and fast self-clamping connector
• Nearly invisible installation with a minimal 6 mm tool opening
• Use in any angle
• Join wood using Zeta P2 power tool or a CNC machine

Clamex P-14

The top reasons to use Clamex P-14 as a standard connector:

1. High-quality aesthetic solution: Nearly invisible, secure connections with high clamping strength
2. Saves time: Process advantages in production, transport and assembly
3. Versatile with a range of applications: One connector for all connection applications and angles. For detachable or glued connections

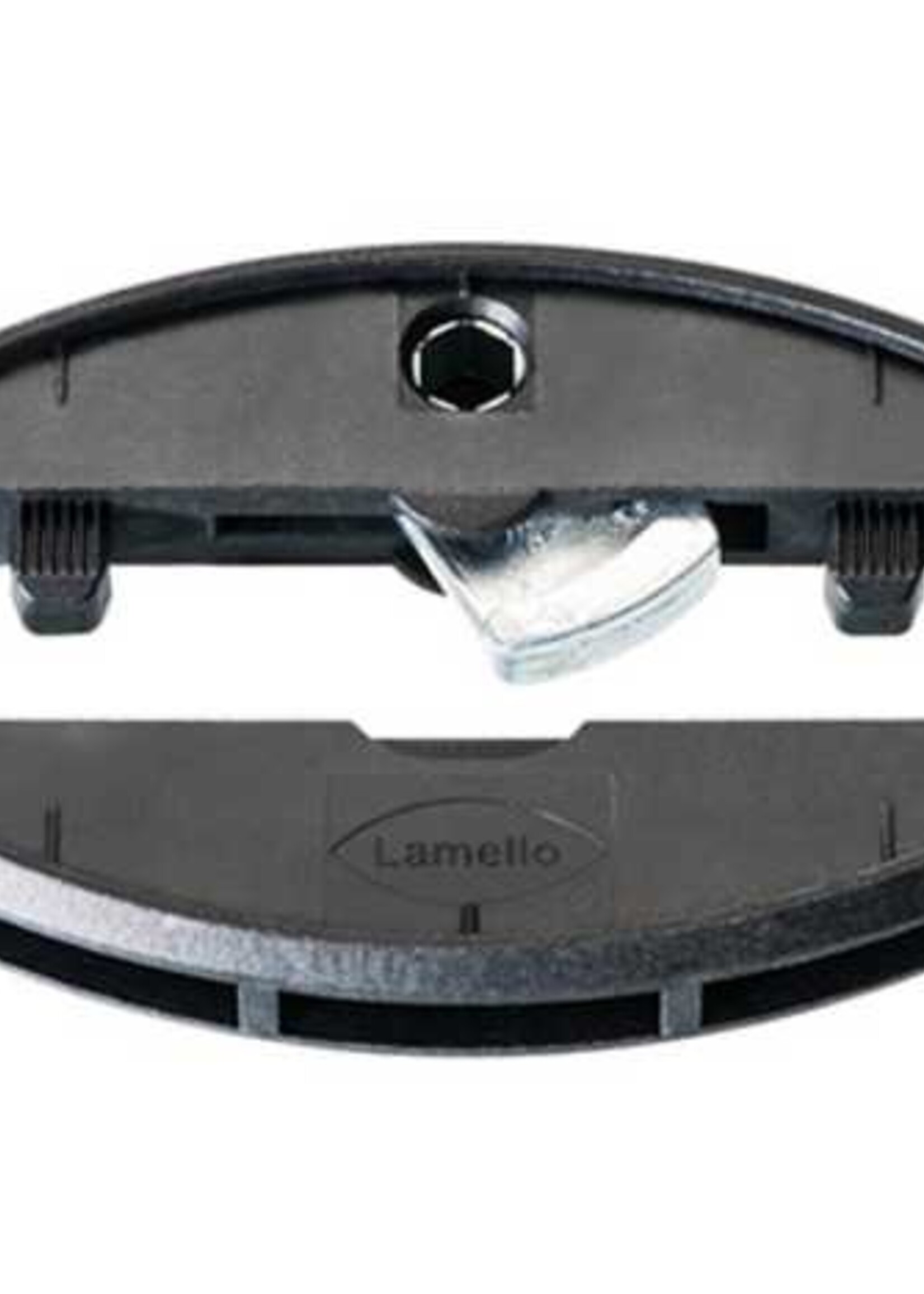

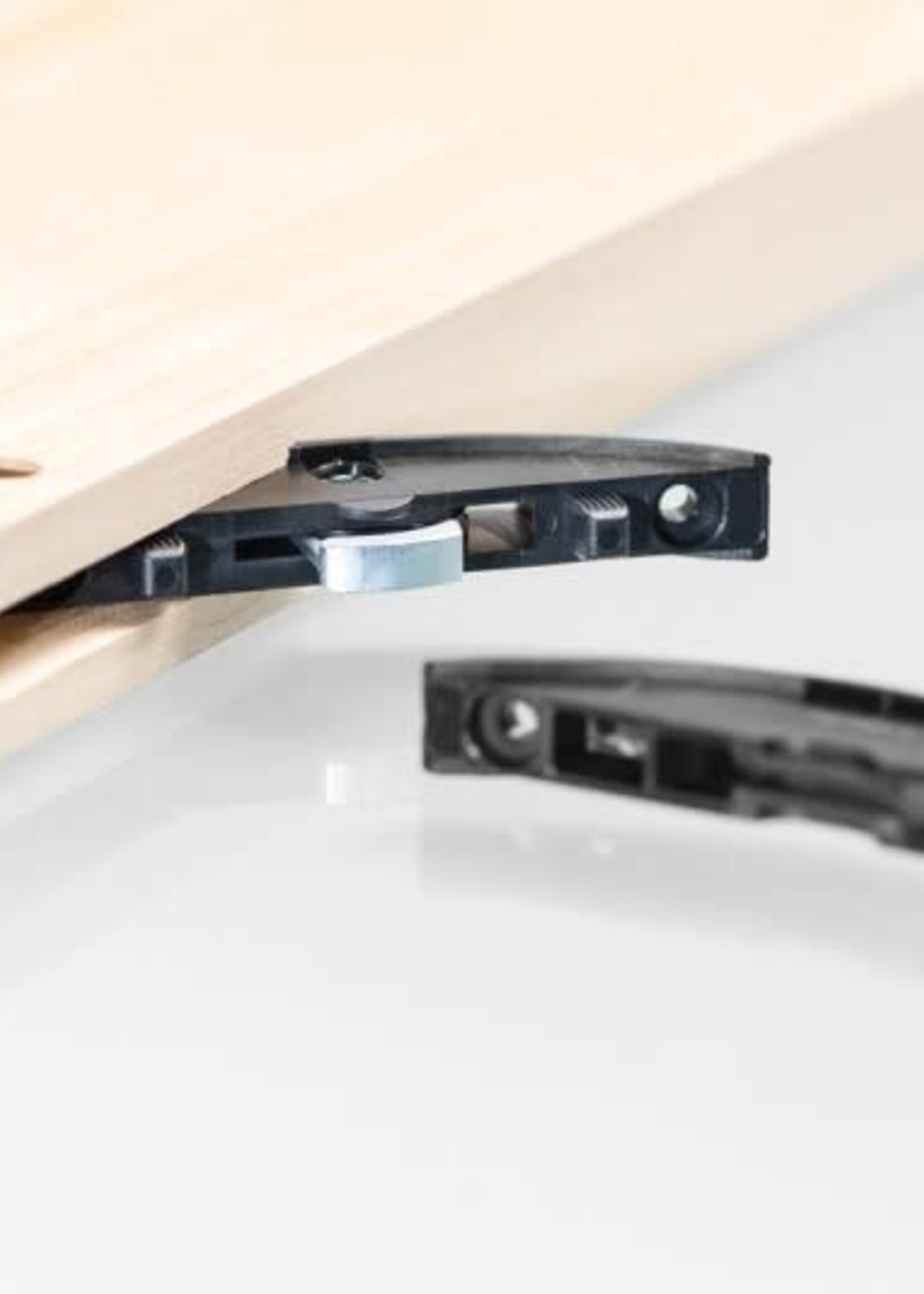

Clamex P-14 is a detachable, two-part connector with an internal cam lock, which is engaged with a lever. Clamex P-14 offers an exceptionally fast and powerful anchorage in the workpiece without tools. Clamex P needs neither glue nor screws, providing the woodworker with numerous advantages in the production process and in the differentiation from standard connecting hardware.

Clamex P-14 has a very small installation depth of 14 mm and may be used in a variety of materials with a minimum thickness of 16 mm (5/8").

Use Zeta P2 depth setting of 14.

Benefits of The Clamex P-14

• Practically wear-free knock-down fitting
• Detachable miter connector for 22.5-180° angles and all butt joints
• Minimal tool opening of just 6 mm
• Extremely rapid, tool-free installation of connectors
• Stackable components for transport with connectors pre-installed
• High clamping force of 200 lbs. for joinery at all angles
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine

Clamex P can be used in furniture serial production or in individual pieces as well as for interior fitting, shop fitting or trade booths.

The connecting fitting is a popular solution for open shelf units, large pieces of furniture and angled counters, while also being used as a general glueing aid. It is frequently employed as an aesthetic, high-quality connection for premium products.

• Knock down fitting for furniture, shelf units, fitted wardrobes, kitchen manufacturing etc.
• Glueing aid for mitres and unusual angles
• Connecting fitting for detachable elements in shop fitting and booth construction
• Powerful alternative to standard connecting fittings
• Rapid prototype construction before starting new furniture range
• On-site adjustments and assembly
